Joining Operator: Join

The joining operators joins the two sequences (collections) and produce a result.

Joining Operators Usage
Join The Join operator joins two sequences (collections) based on a key and returns a resulted sequence.
GroupJoin The GroupJoin operator joins two sequences based on keys and returns groups of sequences. It is like Left Outer Join of SQL.

Join:

The Join operator operates on two collections, inner collection & outer collection. It returns a new collection that contains elements from both the collections which satisfies specified expression. It is the same as inner join of SQL.

Join in Method Syntax:

The Join extension method has two overloads as shown below.

Join() method overloads:
public static IEnumerable<TResult> Join<TOuter, TInner, TKey, TResult>(this IEnumerable<TOuter> outer,
                                                        IEnumerable<TInner> inner, Func<TOuter, TKey> outerKeySelector,
                                                        Func<TInner, TKey> innerKeySelector,
                                                        Func<TOuter, TInner, TResult> resultSelector);

public static IEnumerable<TResult> Join<TOuter, TInner, TKey, TResult>(this IEnumerable<TOuter> outer,
                                                        IEnumerable<TInner> inner,
                                                        Func<TOuter, TKey> outerKeySelector,
                                                        Func<TInner, TKey> innerKeySelector,
                                                        Func<TOuter, TInner, TResult> resultSelector,
                                                        IEqualityComparer<TKey> comparer);

As you can see in the first overload method takes five input parameters (except the first 'this' parameter): 1) outer 2) inner 3) outerKeySelector 4) innerKeySelector 5) resultSelector.

Let's take a simple example. The following example joins two string collection and return new collection that includes matching strings in both the collection.

Example: Join operator C#

IList<string> strList1 = new List<string>() {
    "One",
    "Two",
    "Three",
    "Four"
};

IList<string> strList2 = new List<string>() {
    "One",
    "Two",
    "Five",
    "Six"
};

var innerJoin = strList1.Join(strList2,
                      str1 => str1,
                      str2 => str2,
                      (str1, str2) => str1);

One
Two

Now, let's understand join metohod using following Student and Standard class where Student class includes StandardID that matches with StandardID of Standard class.

Example Classes

public class Student{
    public int StudentID { get; set; }
    public string StudentName { get; set; }
    public int StandardID { get; set; }
}

public class Standard{
    public int StandardID { get; set; }
    public string StandardName { get; set; }
}

The following example demonstrates LINQ Join query.

Example: Join Query C#

IList<Student> studentList = new List<Student>() {
    new Student() { StudentID = 1, StudentName = "John", StandardID =1 },
    new Student() { StudentID = 2, StudentName = "Moin", StandardID =1 },
    new Student() { StudentID = 3, StudentName = "Bill", StandardID =2 },
    new Student() { StudentID = 4, StudentName = "Ram" , StandardID =2 },
    new Student() { StudentID = 5, StudentName = "Ron"  }
};

IList<Standard> standardList = new List<Standard>() {
    new Standard(){ StandardID = 1, StandardName="Standard 1"},
    new Standard(){ StandardID = 2, StandardName="Standard 2"},
    new Standard(){ StandardID = 3, StandardName="Standard 3"}
};

var innerJoin = studentList.Join(// outer sequence
                      standardList,  // inner sequence
                      student => student.StandardID,    // outerKeySelector
                      standard => standard.StandardID,  // innerKeySelector
                      (student, standard) => new  // result selector
                                    {
                                        StudentName = student.StudentName,
                                        StandardName = standard.StandardName
                                    });

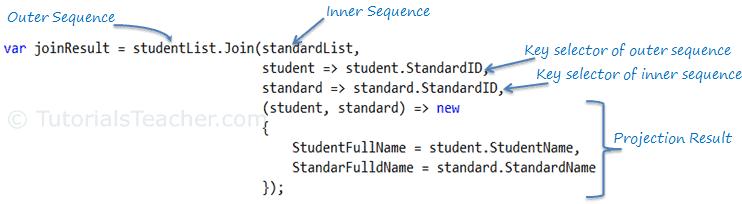

The following image illustrate the parts of Join operator in the above example.

join operator

In the above example of join query, studentList is outer sequence because query starts from it. First parameter in Join method is used to specify the inner sequence which is standardList in the above example. Second and third parameter of Join method is used to specify a field whose value should be match using lambda expression in order to include element in the result. The key selector for the outer sequence student => student.StandardID indicates that take StandardID field of each elements of studentList should be match with the key of inner sequence standard => standard.StandardID. If value of both the key field is matched then include that element into result.

The last parameter in Join method is an expression to formulate the result. In the above example, result selector includes StudentName and StandardName property of both the sequence.

StandardID Key of both the sequences (collections) must match otherwise the item will not be included in the result. For example, Ron is not associated with any standard so Ron is not included in the result collection. innerJoinResult in the above example would contain following elements after execution:

John - Standard 1
Moin - Standard 1
Bill - Standard 2
Ram - Standard 2

The following example demonstrates the Join operator in method syntax in VB.Net.

Example: Join operator VB.Net

Dim innerJoin = studentList.Join(standardList,
                                    Function(s) s.StandardID,
                                    Function(std) std.StandardID,
                                    Function(s, std) New With
                                    {
                                        .StudentName = s.StudentName,
                                        .StandardName = std.StandardName
                                    });

Join in Query Syntax:

Join operator in query syntax works slightly different than method syntax. It requires outer sequence, inner sequence, key selector and result selector. 'on' keyword is used for key selector where left side of 'equals' operator is outerKeySelector and right side of 'equals' is innerKeySelector.

Syntax: Join in query syntax

        from ... in outerSequence
join ... in innerSequence
on outerKey equals innerKey
select ...

The following example of Join operator in query syntax returns a collection of elements from studentList and standardList if their Student.StandardID and Standard.StandardID is match.

Example: Join operator in query syntax C#

IList<Student> studentList = new List<Student>() {
    new Student() { StudentID = 1, StudentName = "John", Age = 13, StandardID =1 },
    new Student() { StudentID = 2, StudentName = "Moin",  Age = 21, StandardID =1 },
    new Student() { StudentID = 3, StudentName = "Bill",  Age = 18, StandardID =2 },
    new Student() { StudentID = 4, StudentName = "Ram" , Age = 20, StandardID =2 },
    new Student() { StudentID = 5, StudentName = "Ron" , Age = 15 }
};

IList<Standard> standardList = new List<Standard>() {
    new Standard(){ StandardID = 1, StandardName="Standard 1"},
    new Standard(){ StandardID = 2, StandardName="Standard 2"},
    new Standard(){ StandardID = 3, StandardName="Standard 3"}
};

var innerJoin = from s in studentList // outer sequence
                      join st in standardList //inner sequence
                      on s.StandardID equals st.StandardID // key selector
                      select new { // result selector
                                    StudentName = s.StudentName,
                                    StandardName = st.StandardName
                                };

Example: Join operator in query syntax VB.Net

Dim innerJoin = From s In studentList ' outer sequence
                      Join std In standardList  ' inner sequence
                      On s.StandardID Equals std.StandardID ' key selector
                      Select _  ' result selector
                            StudentName = s.StudentName,
                            StandardName = std.StandardName

Output:
John - Standard 1
Moin - Standard 1
Bill - Standard 2
Ram - Standard 2
Note : Use the equals operator to match key selector in query syntax. == is not valid.

Points to Remember :

  1. Join and GroupJoin are joining operators.
  2. Join is like inner join of SQL. It returns a new collection that contains common elements from two collections whosh keys matches.
  3. Join operates on two sequences inner sequence and outer sequence and produces a result sequence.
  4. Join query syntax:
    from... in outerSequence
    join... in innerSequence
    on outerKey equals innerKey
    select ...

Learn about GroupJoin next.
